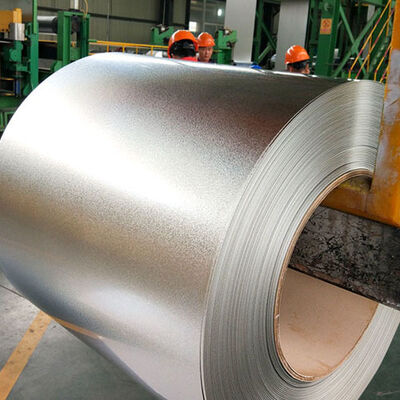

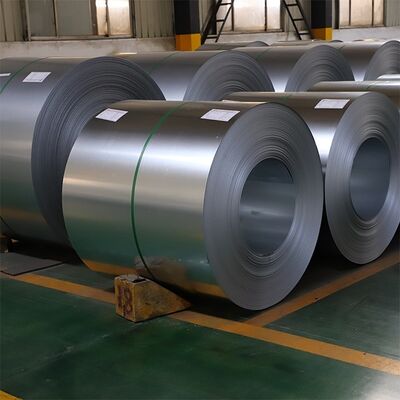

AZ180 Heavy Coated Galvalume Steel Coil For Coastal Industrial Roofing
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Huiyi-GL |
| Certificazione: | ASTM A792M, EN 10346, ISO 9001 |
| Numero di modello: | DX51D+AZ |
| Documento: | HUIYI CATALOGUE.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 25 tonnellate |
|---|---|
| Prezzo: | Negoziabile |
| Imballaggi particolari: | Esportazione di imballaggio con 3 livelli tra cui il film in plastica impermeabile ， carta impermeab |
| Tempi di consegna: | 15-30 giorni |
| Termini di pagamento: | L/C,D/P,T/T |
| Capacità di alimentazione: | 5000 mt/mese |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Bobina in acciaio galvalume | Tipo di prodotto: | Bobina/Foglio/Nastro |
|---|---|---|---|
| Peso del rivestimento: | 30-180G/㎡ | Peso della bobina: | 3 - 8 tonnellate |
| Spessore: | 0,12 - 3,0 mm | Larghezza: | 600 mm - 1500 mm |
| Caratteristica fondamentale 1: | Durata 4-6 volte più lunga rispetto all'acciaio zincato | Caratteristica fondamentale 2: | Disponibile garanzia del substrato di 50 anni |
Descrizione di prodotto
Our AZ180 Heavy Coated Galvalume Steel Coil is engineered for coastal and heavy industrial roofing applications where salt spray and pollutants cause relentless corrosion. Featuring a 55% aluminum-zinc alloy coating (AZ180, 180 g/m²), this product combines aluminum's barrier protection with zinc's sacrificial defense to deliver 4-6 times longer service life than standard galvanized steel, with documented field warranties up to 50 years. It withstands sustained temperatures up to 315°C (600°F). For coastal industrial roofing requiring maximum corrosion protection and minimal lifecycle cost, AZ180 is the ultimate long-term solution.
| Coating Composition | 55% Aluminum, 43.4% Zinc, 1.6% Silicon |
|---|---|
| Zinc Coating | AZ30 - AZ180 |
| Thickness | 0.12 - 3.0mm |
| Width | 600mm - 1500mm |
| Surface Treatment | Chromated Passivation, Oiled, Anti-Fingerprint |
| Spangle Finish | Regular / Minimized / Zero spangle |
| Heat Resistance | Up to 315°C continuous |
| Key Performance | 50-year substrate warranty available |
- Coastal Industrial Roofing & Cladding: Primary material for factories, processing plants, warehouses, and logistics centers located within coastal zones where salt spray and high humidity accelerate standard material degradation.
- Severe Industrial Environments: Chemical processing plants, pulp and paper mills, fertilizer plants, refineries, and other facilities exposed to aggressive industrial pollutants and chemical atmospheres.
- Marine & Port Facilities: Buildings at seaports, shipyards, dockside warehouses, and offshore platform support structures where resistance to seawater spray is critical.
- Power Generation & Infrastructure: Power plants, substation buildings, and critical infrastructure requiring maximum corrosion protection with minimal maintenance access.
Triple-Shield Packaging: VCI anti-rust kraft paper inner layer, 0.3mm PE waterproof film with moisture indicators, steel-strapped pallets + edge guards (max. 8-ton coils).
Global Logistics: FOB/CIF from Chinese ports; 15-20 day delivery for Asia, 30-45 days globally.
Quality Assurance: Pre-shipment inspection and moisture indicators for transit protection.
