Il GI colora le lamiere di acciaio ondulate rivestite, GI ha ondulato coprire lo strato
Dettagli:
| Luogo di origine: | La Cina |
| Marca: | HUIYI-CZ |
| Certificazione: | SGS,BV,ISO9001 |
| Numero di modello: | DX51D+Z, DC51D+Z, CGCC, SGCC, CGCH, SGCH… |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 25tons ogni spessore |
|---|---|
| Prezzo: | USD/MT |
| Imballaggi particolari: | La carta del pallet package.waterproof del ferro, il film esportanti standard del PE, quindi hanno c |
| Tempi di consegna: | 20-35days |
| Termini di pagamento: | L/C, T/T |
| Capacità di alimentazione: | 8000 tonnellate al mese |
|
Informazioni dettagliate |
|||
| Nome di prodotto: | Il GI colora gli strati ondulati rivestiti, l'acciaio galvanizzato con colore ha ricoperto il metall | materiale basato: | PPGI/GI |
|---|---|---|---|
| Marca della pittura: | Akzo Nobel, il Giappone, Dulux, PPG, ecc | Laccatura anteriore: | 15-25um |
| Laccatura posteriore: | 5-15um | Applicazione: | Coprire metallo, parete |
| Garanzia: | secondo il suoi materiale di base e laccatura | Peso: | come requisiti |
| Identificazione della bobina: | 508MM/610MM | Grado: | CGCC, G550, G450, G400, G300, CGCH, DX51D, DX52D |
| Evidenziare: | Il GI colora le lamiere di acciaio rivestite,Gi di DX51D ondulato coprendo strato,DX51D ha ondulato le lamiere di acciaio |
||
Descrizione di prodotto

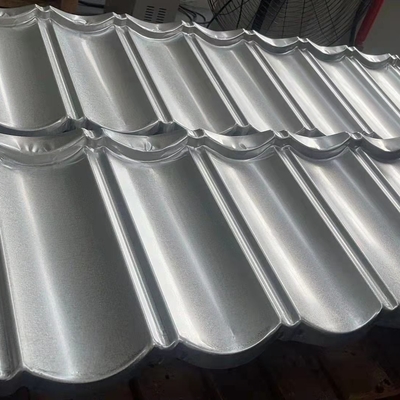

PPGI / GI Color Coated Corrugated Steel Sheets
Introduction of Corrugated steel sheets:
Corrugated Sheets are divided into Galvanized Corrugated Sheets,Galvalume Corrugated Sheets,Color Coated Corrugated Sheets according to its based material and surface processing mode.Such kind of products are widely used in roofing metals.
Since It's very cost-effective and longer warranty compared to clay title,more and more clients used such kind of products to Shelter from the wind and rain .
There are many kinds of shape for such kinds of products,which will make the buildings more artistic and
attractive .
Export Specification of corrugated steel sheet :
| Products | PPGI/GI Corrugated steel sheet |
| Grade | DX51D, SGCC, SGCH, SGLCC, SGLCH,Q195 |
| Thickness | 0.17- 0.6mm |
| Width | 762mm/680,670,660,655,650mm 9 waves |
| 914mm/815,810,790,780mm 11 waves | |
| Length | 1.8- 5meters or as client’s request |
| Zinc coating | 30-275g/m2 |
| Coating thickness | Top side 15-25 micro; Back side 5-15 micro |
| Normally, Top 17-25micro, Back 5-7 micro | |
| Surface | High Glossy |
| Paints | Nippon, Akzo Nobel, Winter, Pingyuan depends on clients’ reques |

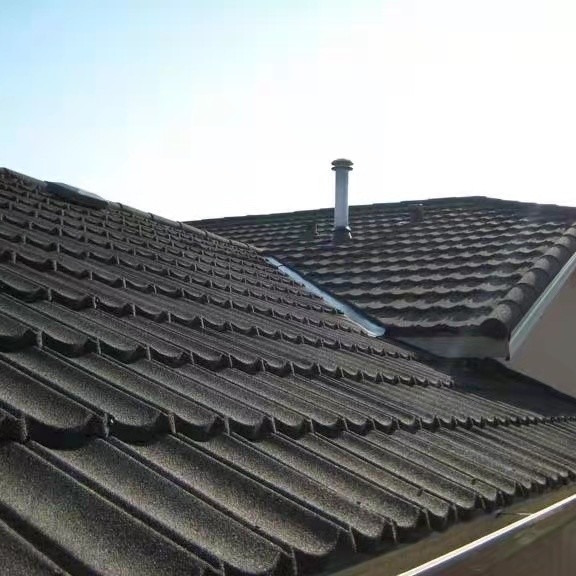

Here comes some cases of corrugated steel sheet as below:
FAQ:
1. Hour about your experience?
A: We have exported steel products more than 6years, know all kinds of steel products very well.We can always grasp the market and suggest our clients to order at the appropriate time.
2. How to make sure your quality?
A: We have experienced inspector to check each order before production,if can not reach customer's quirements,we won't export to our clients.
3. Can your give your customer warranty letter?
A: We will issue warranty letter to our customer according to their true requirements.
4. Which contries does your company export to?
A: We have exported more than 20contries until now
Asia: Korea, Singapore, Vietnam, Thailand, Burma, India, Pakistan, Philippines,Bangladesh, Nepal
and Sri Lanka,Jordan, Israel, Saudi Arabia, Iraq, Iran,Syria, Lebanon, UAE, Yemen
Europe: Romania, Turkey, Greece
Africa: Egypt, Algeria, Nigeria, Ghana, Sudan, Cameroon
Oceania: Australian
